Our design is easy to dismantle and reassemble for cleaning.
UNIQUE Q-BLADES FOR LOW NOISE
Uniquely designed blades ensure minimal noise disruption during operation.
THERMAL SAFETY FUSE
Safety fuse ensures that no accidents occur, even when there is spike in current.\
ADVANCED BLADE DESIGN
New blade design applies advanced aerodynamic principle that minimises any obstacles against the airflow.
-Leading Edge : Forms no obstacle to airflow that streamlines airflow from every direction.
-Air Foil Chip : Reduce turbulence at rear edge, and curvature of front edge is improved for smooth airflow that minimises fan noise as well.
New HP Motor & Bearing
Compared with previous models, new models adopt high performance condenser motor and long life bearing that prolong the product durability – from average 30,000 hours life time to 60,000 hours.
-HP motor and Bearing used in new models
-Long life bearing

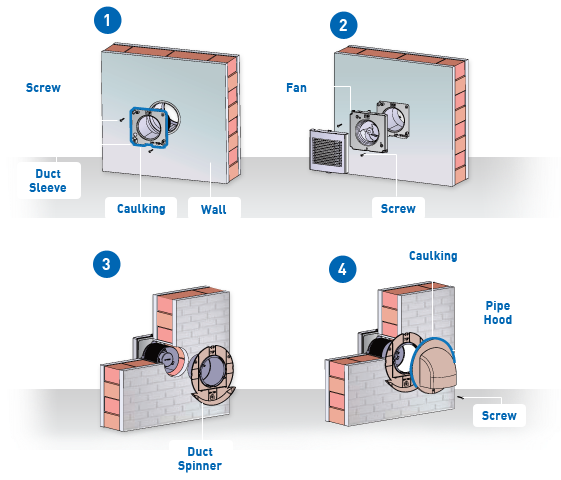

The Exhauster is well-designed to facilitate the installation of product. With the supplied accessories, only 4 steps are required to complete the set up of the ventilating fan.
Insert and fix from inside wall, then caulk.
Connect power wires and fix fan.
Screw and fix from outside wall.
Hang and fix pipe hood, then caulk.
|General Information||Fan Size (cm)||25|
|Motor Rating||240V / 50Hz|
|Air Volume (m³/min)||10.4|
|Motor Type||4 Pole Condenser Motor|
|Noise Level (dB)||45|
|Nett Weight (kg)||1.9|
